SMA (SubMiniature version A) connectors are precision coaxial RF connectors developed to provide a minimal, yet reliable connection interface. The SMA female connector features a threaded coupling mechanism designed to mate securely with SMA male connectors, ensuring a vibration-resistant and stable connection.
| Parameter | Value |
| Article No. | SMA-J195 |
| Frequency range | DC ~6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.30 |
| Withstanding voltage | 1500V |
| Insulation resistance | 5000MΩ |
| Connector type | SMA-male interface |
| Standard | IEC60169-4 |
| Parameter | Value |
| Waterproof degree | NO |
| Moisture resistance | NO |
| Mating cycles | ≥500 |

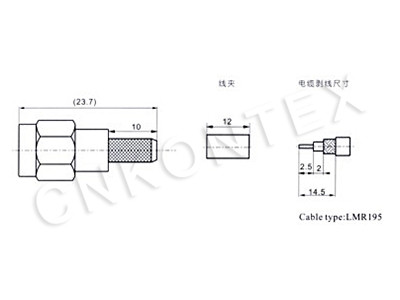

| Outer dimension | 24*9mm |
| Parameter | Value |
| Operating temperature range | -65℃～+165℃ |
| Storage temperature range | -30℃～+60℃ |
| Connector parts | Material | Plating |
| Center conductor | Brass | Gilding |
| Outer conductor | Brass | Silver |
| Dielectric | PTFE | / |
| Salt mist | 96H |
| Standard | 3600pc/plastic bag in separate carton |
