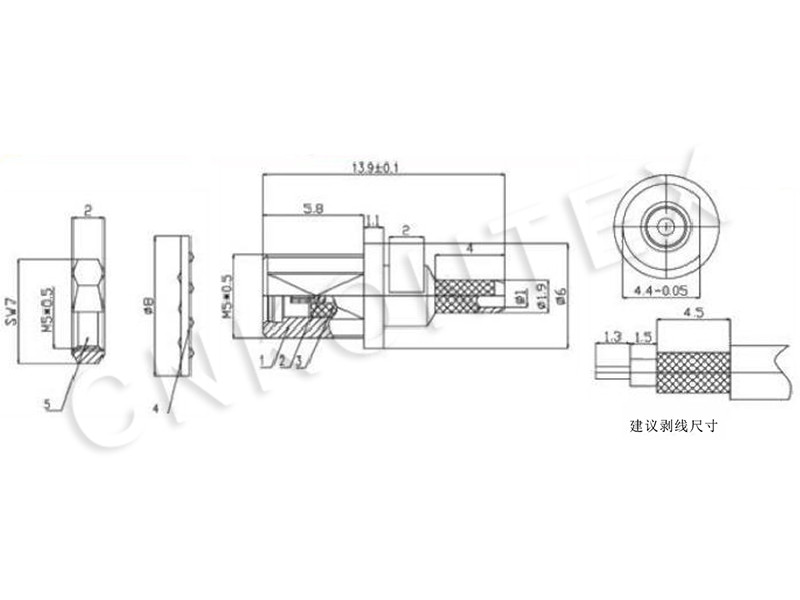

What is an MMCX Jack Straight Connector?
The MMCX (Micro-Miniature Coaxial) jack straight connector is a small, lightweight RF coaxial connector designed for applications requiring compact size and reliable performance. It features a 50-ohm impedance and supports broadband frequencies from DC to 6 GHz, making it suitable for a wide range of RF signal transmission needs.
Key Characteristics:
Lock-snap mechanism allowing 360-degree rotation for flexible cable routing.
Micro-miniature size, smaller and lighter than MCX connectors.
Snap-on/snap-off coupling for quick connect and disconnect.
Available in straight and right-angle configurations.
Compatible with various cable types through crimp or solder terminations.
These features make MMCX jack straight connectors ideal for densely packed electronic assemblies such as mobile phones, GPS receivers, Wi-Fi PCMCIA cards, and in-ear monitors.
Why Choose MMCX Jack Straight Connectors?
Choosing the right RF connector is critical for maintaining signal quality and ensuring mechanical durability. MMCX straight connectors offer several benefits:
1. Broadband Performance with Low Reflection
MMCX connectors maintain a low Voltage Standing Wave Ratio (VSWR), typically ≤1.25 up to 4 GHz and ≤1.40 up to 6 GHz, minimizing signal reflections and losses. This broadband capability ensures clean signal transmission across a wide frequency range.
2. High-Quality at a Competitive Cost
Manufactured with gold-plated beryllium copper contacts and PTFE insulators, MMCX connectors provide excellent electrical performance and corrosion resistance, offering great value for cost-conscious projects.
3. Quick and Secure Snap-On Mating
The snap-on coupling mechanism reduces installation time and allows for easy assembly and maintenance without specialized tools.
4. Durability and Reliability
Rated for at least 500 mating cycles, MMCX straight connectors are built to withstand frequent connect/disconnect operations without compromising performance.
5. Versatile Termination Options
Available in crimp/crimp, crimp/solder, and solder attachment styles, MMCX jack straight connectors can be tailored to different cable types such as RG316, RG174, and LMR-100.
