What is an MMCX Plug Right Angle Connector?
The MMCX (Micro-Miniature Coaxial) plug right angle connector is a type of RF coaxial connector designed for micro-miniature applications requiring a secure, high-frequency connection in a compact form factor. It is a smaller version of the MCX connector, optimized for space-constrained environments.
The "right angle" orientation refers to the connector's 90-degree bend, allowing for better cable routing and reduced strain in tight spaces. This makes it ideal for devices where straight connectors are impractical.

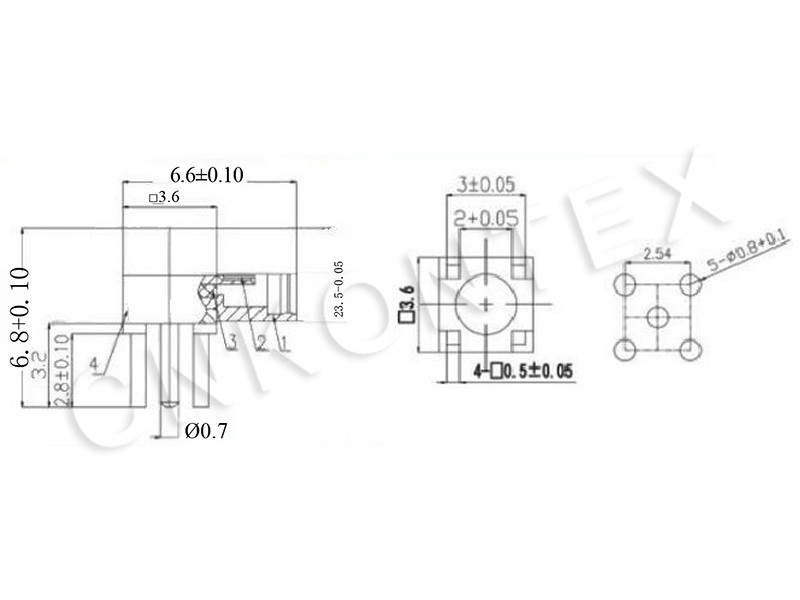

Key Features of MMCX Plug Right Angle Connectors
Understanding the core features of MMCX right angle connectors helps engineers and technicians select the right component for their projects:
Impedance: 50 Ohms, ensuring compatibility with most RF systems.
Frequency Range: DC to 6 GHz, suitable for broadband applications.
Coupling Mechanism: Push-on snap coupling for quick and secure mating.
Size Category: Microminiature, ideal for densely packed electronic assemblies.
Materials: Brass body and contacts with gold plating for corrosion resistance and excellent conductivity.
Insulator: PTFE (Teflon) or similar high-quality dielectric materials for minimal signal loss.
Operating Temperature: Typically ranges from -65°C to +165°C, supporting harsh environmental conditions.
Durability: Designed for ≥ 500 mating cycles, providing long-term reliability.
Orientation: Right angle, facilitating space-saving layouts.
