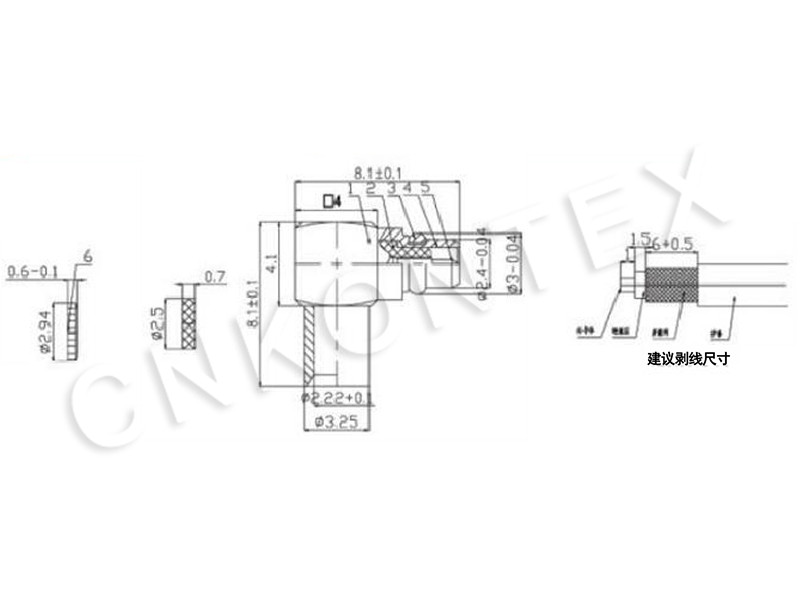

What is an MMCX Right Angle Plug?
The MMCX (Micro-Miniature Coaxial) connector is a small RF connector designed for 50-ohm impedance systems, supporting broadband frequencies from DC up to 6 GHz. The right angle plug variant is specifically engineered to fit into tight spaces where straight connectors might not be practical, enabling better cable routing and minimizing strain on cables.
Key characteristics include:
Compact size: Perfect for densely populated electronic packages.
Push-on coupling mechanism: Allows quick connect/disconnect with a secure snap-on fit.
Right angle orientation: Facilitates efficient space management in device design.
Why Choose a Right Angle MMCX Plug?
The right angle design offers significant advantages in many applications:
Space-saving: Ideal for compact devices like smartphones, GPS receivers, and portable audio equipment.
Improved cable management: Reduces cable bending stress, extending cable life.
Enhanced durability: Right angle connectors reduce strain on solder joints and crimps.
Versatility: Compatible with various cable types including RG174, RG316, and RG405 coaxial cables.
