What Are 5G Board-to-Board RF Connections?
5G board-to-board RF connections are blind-mate, push-on coaxial interfaces designed to route multiple high-frequency RF channels between boards or modules in 5G radio units, antenna panels, and millimeter-wave modules. The interfaces combine the blind-mate mechanism of SMP/SMPM with multi-position shrouds (ganged) for high-density applications.
Typical 5G BTB applications:
5G FR1 massive-MIMO antenna panels (64T64R, 128T128R).
5G FR1 macro-cell radio-to-antenna interconnect.
5G FR2 (mmWave) small-cell modules (24–40 GHz).
5G small-cell radio-to-antenna interconnect.
Phased-array radar modules (for comparison / dual-use).
High-density test fixtures.
The combination of high channel count, high frequency, and tight assembly tolerances makes 5G BTB one of the most demanding RF interconnect applications.
Why Are BTB Connections Critical for 5G?
5G antenna systems require many RF channels (typically 64 to 256 per radio) to support beamforming and MIMO, making traditional cable harnesses impractical due to size, weight, and assembly complexity. BTB connections allow all channels to mate simultaneously with a single mechanical engagement.
5G BTB advantages over cable harnesses:
Density. 4–16 RF channels in the same footprint as one cable connector.
Cost. Lower than equivalent cable harness for high channel count.
Assembly. Single mechanical engagement instead of N individual connections.
Repeatability. Factory-controlled geometry, less operator variability.
Loss. Shorter signal path than cables.
For 5G massive-MIMO 64T64R, the radio unit connects to the antenna panel with a single multi-position BTB interface carrying all 64 RF channels, eliminating 64 individual cable connections.
What Are the Main Interface Types?
5G BTB interfaces include SMP, SMPM (SSMP), ganged SMP, and proprietary high-density 5G BTB solutions, with the choice driven by frequency range, channel count, and assembly tolerances. Each interface has a different balance of density, frequency, and tolerance.
|
Interface |
Frequency |
Channel pitch |
Float |
Mating force |
Application |
|
SMP (single) |
40 GHz |
~6 mm |
±0.25 mm |
Medium |
General blind mate |
|
SMPM / SSMP (single) |
65 GHz |
~4 mm |
±0.15 mm |
Medium |
mmWave |
|
Ganged SMP (4-port) |
40 GHz |
~6 mm |
±0.20 mm |
Medium |
5G FR1 antenna |
|
Ganged SMP (8-port) |
40 GHz |
~6 mm |
±0.20 mm |
Medium |
5G FR1 antenna |
|
Ganged SMPM (4-port) |
65 GHz |
~4 mm |
±0.15 mm |
Medium |
5G FR2 mmWave |
|
5G BTB (proprietary) |
6–12 GHz |
~3 mm |
±0.30 mm |
Low |
High-density antenna |
|
5G BTB (mmWave) |
40 GHz |
~2.5 mm |
±0.20 mm |
Low |
High-density mmWave |
For 5G FR1 (sub-6 GHz, primarily 3.5 GHz) massive-MIMO, ganged SMP is the dominant interface. For 5G FR2 (24–40 GHz) mmWave modules, ganged SMPM is emerging.
What Are the Mechanical Requirements?
5G BTB connections must accommodate typical assembly tolerances of ±0.2 mm (radial) and ±0.3 mm (axial), while maintaining VSWR ≤ 1.30 across the operating band and ≥ 100 mating cycles for field service. The mechanical interface must be robust enough for production assembly yet tolerant enough for typical tolerances.
|
Mechanical spec |
Typical value |
Notes |
|
Radial float |
±0.20 to ±0.30 mm |
Must accommodate board-to-board misalignment |
|
Axial float |
±0.25 to ±0.50 mm |
Must accommodate board-to-board gap variation |
|
Mating force (per channel) |
15–30 N |
Must allow hand or robotic mating |
|
Mating cycles |
≥ 100 (typ.), ≥ 500 (premium) |
Field service and rework |
|
Mechanical keying |
Optional |
To prevent mis-mating of multiple BTB |
|
Polarization |
Optional |
To prevent reverse mating |
For robotic assembly (the typical 5G production scenario), the BTB interface is part of a pick-and-place or fixture-mated operation with controlled position and force.
What Are the Electrical Requirements?
5G BTB connections must meet strict VSWR, PIM, and isolation requirements to support MIMO beamforming without cross-channel interference. The most demanding metric is typically PIM at the 5G operating band.
|
Electrical spec |
Standard value |
Premium value |
|
VSWR (DC – 6 GHz) |
≤ 1.30 |
≤ 1.20 |
|
VSWR (6 – 12 GHz) |
≤ 1.40 |
≤ 1.30 |
|
VSWR (12 – 40 GHz) |
≤ 1.50 |
≤ 1.35 |
|
PIM (2 × 43 dBm) |
≤ −155 dBc |
≤ −160 dBc |
|
Insertion loss (per channel, 6 GHz) |
≤ 0.30 dB |
≤ 0.20 dB |
|
Isolation (channel-to-channel, 6 GHz) |
≥ 60 dB |
≥ 70 dB |
|
Crosstalk (NEXT, 6 GHz) |
≤ −50 dB |
≤ −60 dB |
For 5G FR1 3.5 GHz massive-MIMO, PIM ≤ −155 dBc is mandatory (typically specified ≤ −160 dBc) to prevent intermodulation products from degrading the receiver sensitivity.
How Does the Floating Mechanism Work?

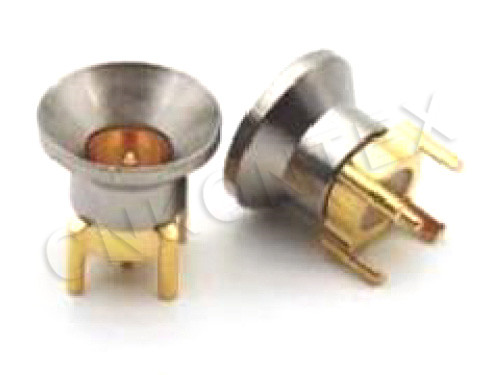

The 5G BTB floating mechanism uses a spring-loaded outer shroud on one side and a rigid receptacle on the other, with the floating bullet captured inside the shroud and free to move radially and axially. The spring provides normal force while allowing float.
|
Feature |
Function |
|
Floating shroud |
Compensates for radial misalignment |
|
Spring-loaded contact |
Provides normal force at any axial position |
|
Bullet retention |
Holds bullet in shroud during shipping |
|
Stop feature |
Prevents over-compression of bullet |
|
Mechanical keying (optional) |
Prevents mis-mating |
The spring-loaded design ensures that each channel maintains reliable RF contact even when the boards are slightly misaligned, which is critical for production assembly tolerances.
What Are the Production Assembly Methods?
5G BTB connections are typically assembled using robotic pick-and-place with vision guidance, with the floating shroud allowing tolerance stack-up without compromising RF performance. Manual assembly is feasible for low-volume but is not typical for production.
|
Assembly method |
Tolerance |
Cost |
Application |
|
Manual hand mating |
±1 mm |
Low |
Prototype, service |
|
Robotic pick-and-place |
±0.2 mm |
Medium |
Production |
|
Vision-guided alignment |
±0.05 mm |
High |
High-precision production |
|
Fixture-mated |
±0.05 mm |
Medium |
High-volume production |
For 5G base-station production (100k+ units per year), robotic pick-and-place with vision guidance is standard.
What About Test and Verification?
5G BTB connections are 100 % electrically tested at the factory (VSWR, PIM) and mechanically tested at the design qualification stage (mating cycle, vibration, thermal shock). Per-assembly VSWR and PIM testing is mandatory for 5G base-station deployment.
|
Test |
Equipment |
Pass criterion |
|
VSWR |
VNA |
≤ spec (typ. ≤ 1.30 @ 6 GHz) |
|
PIM |
PIM analyzer, 2 × 43 dBm |
≤ spec (typ. ≤ −155 dBc) |
|
Insertion loss |
VNA |
≤ spec |
|
Isolation |
VNA |
≥ spec (typ. ≥ 60 dB) |
|
Hi-pot |
Hi-pot tester |
No breakdown at rated voltage |
|
Mating cycle |
Mechanical fixture |
≥ 100 cycles |
For 5G FR2 mmWave modules, additional tests include far-field pattern and EIRP measurements with the BTB interface in place.
What Are Common 5G BTB Applications?
5G BTB connections are used in every modern 5G base-station antenna panel and many 5G small-cell modules, with the dominant applications being macro-cell massive-MIMO and small-cell mmWave. The interfaces are an essential part of the 5G infrastructure.
|
Application |
Frequency |
Connector |
Channels |
Typical product |
|
5G FR1 64T64R massive-MIMO |
3.5 GHz |
Ganged SMP |
8–16 |
Macro antenna panel |
|
5G FR1 32T32R |
2.6 GHz |
Ganged SMP |
4–8 |
Macro antenna panel |
|
5G FR2 4×4 mmWave |
28 GHz |
Ganged SMPM |
4 |
Small-cell module |
|
5G FR2 8×8 mmWave |
39 GHz |
Ganged SMPM |
8 |
Small-cell module |
|
5G small cell |
3.5–28 GHz |
SMP / SMPM |
2–4 |
Compact small cell |
|
Phased-array radar (dual use) |
10–40 GHz |
SMP / SMPM |
4–64 |
Defense, weather radar |
Kontex's 5G Board-to-Board family provides the full range of ganged SMP / SMPM shrouds, with custom configurations available.
What Are the Limitations?
5G BTB connections have four main limitations: high-precision assembly tooling required, mating cycle durability, mechanical tolerance stack-up management, and cost for low-volume applications. Each limitation is addressable.
|
Limitation |
Cause |
Mitigation |
|
Precision tooling required |
Tight float and VSWR requirements |
Robotic assembly with vision guidance |
|
Mating cycle limit |
Wear of bullet and shroud |
Replace shroud as service part |
|
Tolerance stack-up |
Multiple channels, multi-position |
Use generous float, mechanical datum features |
|
Cost for low volume |
Custom tooling, qualification |
Standard catalog parts for prototyping |
For prototyping and low-volume, standard catalog SMP / SMPM shrouds are cost-effective. For high-volume, custom ganged shrouds amortize the tooling cost across many units.
How Do 5G BTB Compare to Cable Harnesses?
5G BTB connections are preferred over cable harnesses for high-channel-count 5G applications because they provide higher density, lower cost, and simpler assembly. Cables remain preferred for low-channel-count or test applications.
|
Aspect |
5G BTB |
Cable harness |
|
Density |
4–16 channels per interface |
1 channel per connector |
|
Cost per channel |
Low |
Medium |
|
Assembly complexity |
Single engagement |
N engagements |
|
Loss |
Short path, low loss |
Cable loss accumulates |
|
Field serviceability |
Replaceable shroud |
Replaceable cable |
|
Volume efficiency |
High |
Medium |
For high-channel-count 5G massive-MIMO, 5G BTB is the only practical solution because the cable harness would be physically too large and too expensive.
Frequently Asked Questions
Q: What is the difference between 5G BTB and SMP?
A: SMP is the basic single-channel blind-mate interface (40 GHz). 5G BTB is a higher-level integration that uses SMP, SMPM (SSMP), or proprietary interfaces in multi-position (ganged) shrouds for high-density applications.
Q: What is the maximum frequency for 5G BTB?
A: For 5G FR1 (sub-6 GHz), standard 5G BTB (ganged SMP) covers up to 6 GHz. For 5G FR2 (24–40 GHz), ganged SMPM covers up to 40 GHz with premium versions reaching 65 GHz.
Q: How many RF channels can a single 5G BTB carry?
A: Standard 5G BTB products carry 4, 6, 8, 12, or 16 channels in a single multi-position shroud. Custom configurations can carry more channels with multi-row arrangements.
Q: What is the typical PIM for 5G BTB?
A: Standard 5G BTB specifies PIM ≤ −155 dBc @ 2 × 43 dBm. Premium versions specify ≤ −160 dBc or lower. PIM is the most critical metric for 5G base-station deployment.
Q: Can 5G BTB be field-replaced?
A: Yes, the floating shroud on one side can be replaced as a service part. The receptacle on the opposite side is soldered to the board and is not typically field-replaced.
Q: Are 5G BTB and SMP the same standard?
A: SMP follows IEC 61169-8 and is a recognized international standard. 5G BTB is a market segment term that uses SMP, SMPM, and proprietary multi-position shrouds; it is not itself a single standard.
Q: Does Kontex offer custom 5G BTB configurations?
A: Yes. Kontex's 5G Board-to-Board family includes standard ganged SMP / SMPM shrouds and offers custom configurations including non-standard channel counts, custom PCB-launch geometry, and integrated power/signal contacts. Contact the Kontex engineering team for custom requirements.
Q: What is the minimum bend radius for 5G BTB cable assemblies?
A: 5G BTB itself does not have a bend radius because it is a board-to-board interface. For 5G BTB-to-external-cable assemblies, the cable-side bend radius follows the cable specification (e.g., LMR-240 minimum 19 mm static).
Q: Can 5G BTB be used for 6G (sub-THz)?
A: For 6G sub-THz (140–300 GHz), current SMP and SMPM interfaces are insufficient. New waveguide-based or photonic interfaces are being developed for sub-THz.
Conclusion
5G board-to-board RF connections are essential for the high-density, high-frequency RF routing required between 5G radio units and antenna panels, with ganged SMP and SMPM as the dominant interfaces. The combination of blind-mate, floating mechanism, multi-position shrouds, and 100 % factory testing makes 5G BTB the practical solution for massive-MIMO and mmWave 5G deployment. Kontex's 5G Board-to-Board family provides the full range of ganged SMP / SMPM and proprietary high-density solutions, complemented by the SMP Series for standard channels and the RF Adapter Series for inter-series transitions. For product range, certifications, and engineering support, consult the Field Application and About pages.
